Plasma Freezer
Plasma Freezer> HOME
Plasma Freezer
Our high- performance- 35C freezers provide long-term storange for specialty plasma products, delivering protection againstinterior warm-up that can result from heavy freezer use. Our 40C plasma freezers maintain safe, uniform storage conditions even at ambient temperatures of up to +45C.
- -35C and -40C units with storage capacities from 80 liter to 60C liter
- Microprocessor basedDigital display Independentbottom temperature control with audio visual alarm for high and low temperature. And power failure alarm.
- CFC free refrigeration system.
- Start p delay protection.
- High intensity insulation foam.
- Lockable caster – easy to move.
- It has washable filter.
- Positive latch with key lock security; prevents door ‘pop-open’ on two-door units.
- Anti-sweat door frame heaters with magnetic compression gaskets to provide a tight door seal.
- dual door for zero cooling loss.
| MODELS | VIPF80 | VIFP140 | VIPF250 | VIPF300 | VIPF450 |
|---|---|---|---|---|---|
| TEMPERATURE | -35°C | -35°C | -35°C | -35°C | -35°C |
| NUMBER OF TRAYS | 2 | 4 | 5 | 6 | 7 |
| SIZE(W*D*H)cms Inner size.(app.) | 44*40*61 | 49*50*82 | 57*49*119 | 60*55*120 | 63*65*142 |
| VOLUME | 150 ltr. | 250 ltr | 300 ltr. | 450 ltr. | 600 ltr. |

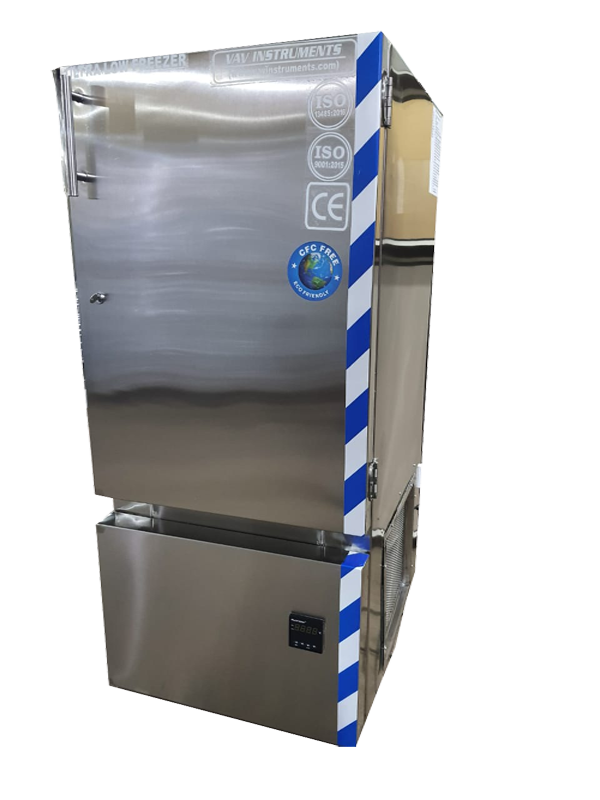

-40 Deg C Plasma Freezer
Plasma Freezer provides an ideal freezing environment for the preservation of Plasma, and test samples. The instruments outer body is made of heavy gauge Mild steel duly powder coated with stainless Steel (304) Inner Chamber. This unit Designed to maintain a stable and uniform temperature of up to -40.0°C, Vertical and Horizontal with four different sizes. The user-friendly design includes a built-in Stainless steel insulated inner door, and simple calibration is possible via the control panel. This coupled with a visual and audible alarm system, ensures that your samples are both safe and secure, but also easy to access when you need them.
Product Descriptio
Construction :
- The Chamber is Double Walled with PUF Insulation, inside 304 Stainless Steel, outer side pre- coated CRC sheet. (STD MODEL).
Temperature Details:
- Controller: Microprocessor controller, with Digital dual display temperature controller cum indicator.
- Range : -40°C, Accuracy ±2°C.
- Uniformity : ± 2°C
- Sensor : Pt100 (RTD)
- Chart Recorder – Circular Chart recorder with chart speed of 7 days 1 revolution.
Product Specification
| Temperature Range | -40 Deg C |
| Model Name/Number | SPF |
| Usage/Application | Laboratory |
| Brand | Vav Instruments |
| Material | MS |
| No. Of Shelves | 3 Shelves |
| Power | Electric |
| Voltage | 240 V |
| Frequency | 50 Hz |
